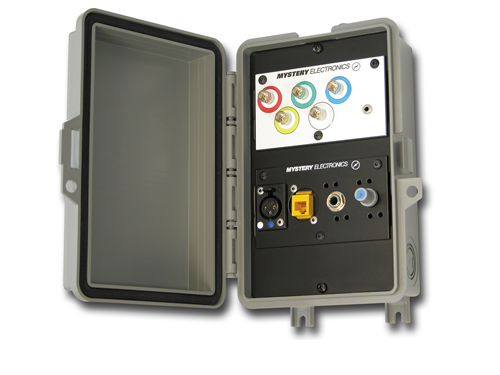

AW2000

AW2000

  • All weather audio video wall box enclosure
  • Surface mount design
  • May be padlocked when needed
  • Completely weatherproof when closed
  • Accepts two (2) ModuLine Connector Insert Panels
  • Long-term value in a professional wall box package
    IN STOCK

  • Our all weather audio video enclosure is the ideal solution when your application is outdoors or dust and moisture are a problem
  • UL Listed high-impact composite enclosure provides UV and weather protection
  • Designed to be surface-mounted
  • Cost effective outdoor solution for connectors, controls, switches and devices
  • Remains open when in use so it is completely weatherproof when closed
  • Rugged 11 gauge ceramic-coated steel interior chassis accepts two (2) ModuLine Insert Connector Panels
  • Neutral warm gray color compliments most exterior surfaces
  • Features full length hinge for strength and rigidity
  • Available provisions for Decora®, AAP®, MAAP® devices, up to eight (8) Neutrik® D type connectors, and more*
  • Padlockable and fully weather proof when not in use
  • Enclosure meets requirement ratings for: NEMA 3R, UL3R, and IEC IP32

Ideal for:

    • Sports fields – intercom, microphone, or portable speaker connections, remote truck interface, stadiums
    • Hotels – banquet facilities, meeting rooms, poolside controls
    • Houses of worship – fellowship halls
    • Commercial / Industrial – exterior controls and connectors
    • Institutional – intercom stations, controls, audio, video, tel & data
    • Specialty – parks, band shells, cruise ships
    • Schools – bus call station, AV connections
    • Anywhere audio and video connections are needed outside

Includes: 1ea all weather enclosure, 1ea interior chassis, and installation hardware.  Compatible low-voltage connector insert panel(s), labeling, connectors, and accessories also available.

*subject to available depth behind panel

Weight 6 lbs
Connector Capacity

8ea FlexiConn (or equivalent)
Overall Enclosure Dim w/ mounting tabs (nominal)

10L x 6.5W x 3.754D in
Exterior Enclosure Base Dim (nominal)

8L x 5W x 2.4D in
Interior Enclosure Base (nominal)

7.5L x 4.5W x 2D in
Knock Outs

1/2” & 3/4” combo knock out (5ea)
ModuLine Panel / Option Capacity

2 (Two)
Finish

Neutral Gray
Assembly

1ea all weather enclosure, 1ea interior chassis, and installation hardware
Warranty

2 Years

Resources

Cut Sheet

Related

Connectors

Moduline Connector Panels

Connector Panel Labeling

A&E Specification

AW2000 – All Weather AV Enclosure.  Wall box assembly shall consist of a composite material with a full length hinged door and integral gasket, shall overall measure 10”L x 6.5”W x 3.754”D, shall be surface mountable and padlockable.  Enclosure shall have radiused corners and a neutral grey finish so as not to create specular light reflections.  Exterior enclosure base shall measure 8”L x 5”W x 2.4D with five (5ea) available 1/2” & 3/4” combo knock outs.  Enclosure assembly shall include one (1ea) 11 gauge ceramic-coated steel interior chassis, chassis shall accommodate two (2ea) ModuLine Insert Panel. ModuLine Insert Panel shall be of 14 gauge steel, shall accommodate __ (specify quantity) connectors, and shall be removable for installation and service without disassembling interior chassis. Enclosure shall be UL Listed and conform to all applicable standards of NEMA 3R, UL3R, IEC IP32, and the National Electrical Code. Wall box assembly shall be Mystery Electronics AW2000.
