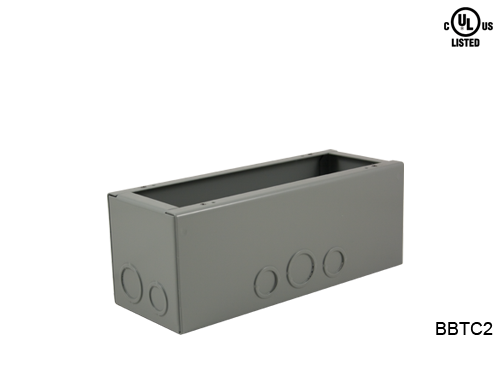

BBTC2 - for TC20 Series

BBTC2 – for TC20 Series

  • Rough-in back box for all TC20 Series floor box pockets
  • Ensures hassle-free compatibility
  • Pre-punched and tapped mounting holes for easy trim-out
  • Alignment labels aid proper rough-in installation
  • Knockouts on all sides
  • UL Listed and conforms to NEMA® standards
    IN STOCK

        • Required for concrete, masonry, and conduit system applications*
        • Concentric / Combo knockouts on all sides for maximum conduit termination flexibility
        • Heavy gauge cold rolled steel construction
        • Urethane coating provides superior corrosion resistance than galvanized
        • Conforms to NEMA® standards
        • UL Listed

    *While site conditions may make them optional, rough-in boxes are also recommended for raised wooden floor or hollow wall construction.  For details, see the appropriate TechNote Installation Instructions or call us for application assistance.

Includes: 1ea BBTC2 Rough-In box

Weight 1 lbs
Compatible Enclosures

TC20 Series
Overall Dimension (nominal)

10.5Lx4Wx4H in
Assembly

1ea BB* (model indicated)
Warranty

2 Years

Resources

Cut Sheet

Related

Floor box pockets

Connectors

Connector Panel Labeling

A&E Specification

BBTC2 | Rough-in Box for TC20 Floor Box – 10.5”x4”x4”
Rough-in box shall be heavy gauge cold rolled steel, shall measure 10.5”L x 4”W x 4”D nominal dimension, shall be UL Listed and conform to N.E.M.A. standards. Rough-in box shall have 10 each combination knock outs (1/2” to 1” trade size) spaced uniformly on the sides and ends. Rough-in box shall have screw attached, disposable heavy gauge metal cover to protect rough-in box during rough-in, w/ factory applied label to aid alignment/positioning of subsequent TC20 floor box installation. The cover mounting flange shall have 4 holes tapped for 8/32 screws to accommodate mounting of Mystery Electronics TC20 floor box. Rough-in box shall be coated overall with gray urethane. Rough-in box shall be Mystery Electronics BBTC2.
