DuoLine Insert Connector Panels

DuoLine Insert Connector Panels

  • Connector panels compatible with TC Series Floor Box Pockets (select dropdown for details)
  • Connector variations for:  FlexiConn, Neutrik D, SwitchCraft E or D3F, VGA, Decora, Extron AAP & MAAP, Keystone, BNC, 3.5 mm, Blanks, Duplex power
  • Satin Black ceramic finish
  • Heavy-duty 14 gauge construction
  • Full panel labeling and connectors also available
    IN STOCK – Request Support or Dealer Referral

Proprietary mounting system offers recessed connectors in a shallow depth footprint

Compatible Audio Video Enclosures:  TC Series – Floor Box Pockets

Variations include:
Item | Laser-cut Position(s) Available
DPA | 1ea FlexiConn / Neutrik® D or SwitchCraft® D3F
DPB | 2ea FlexiConn / Neutrik® D or SwitchCraft® D3F
DPG | 1ea FlexiConn / Neutrik® D or SwitchCraft® D3F, 1ea VGA, and pilot hole for optional audio
DPD | 2ea Extron® MAAP

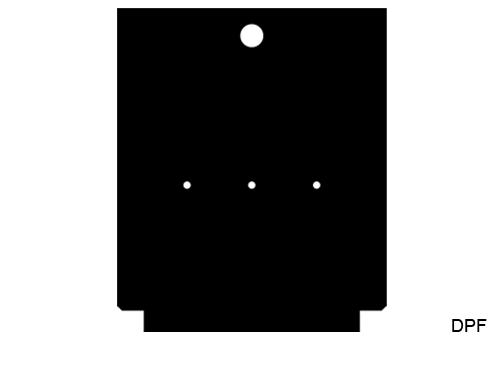

DPF | Blank insert panel for unneeded and future use panel locations or on-site customization

  • Heavy-duty 14 gauge steel construction
  • Satin Black Ceramic finish provides scratch resistance for long term durability
  • Laser-cut precision eliminates crooked connectors and warped panels
  • Vertically positioned connector mountings for professional appearance
  • Combine with available full panel labeling for a distinctive signature to any project
  • Your logo graphic with our unlimited labeling colors creates a complete panel solution

Compatible FlexiConn connectors include: XLRF-D, XLRM-D, SPKN-D (Speakon), TRSL-D (locking 1/4″), HDMI-D, USB-D, ST3.5mm stereo mini options, HFPN (AV connector blank), any many more.

Includes: 1ea DP* Panel / Option.  Compatible labeling, low-voltage connectors, and accessories also available.

Weight 1 lbs
Overall Dimension (nominal)

2.336W x 2.813H in
Finish

Satin Black
Assembly

1ea DuoLine Panel
Warranty

2 Years

Resources

Cut Sheet

Dimensions

Related

Connectors

Connector Panel Labeling

A&E Specification

DuoLine Insert Panel(s)
DP* – DuoLine Insert Panel(s) shall be of 14 gauge steel, shall accommodate __ (specify quantity/type) connector(s), and shall be removable for installation and service without disassembling Cover, Gasket or Basket.  All components shall conform to all applicable standards of the National Electrical Code.  DuoLine Insert Panel(s) shall be Mystery Electronics DP*.  (determine connector quantity/type to specify part number).
