For anywhere you need EasyMix Control!
- Compatible Digital Signal Processors include:
- Biamp Tesira®
- BSS Soundweb London®
- QSC Q-SYS®
- Rane Halogen®
- Symetrix SymNet® & Jupiter®
- Xilica Neutrino & Solaro®
- Simplified control of Volume, EQ and DSP functions via Ethernet
- 6 Motorized faders – virtual banks provide up to 18 additional fader channels (24 total)
- Built-in browser interface to add control values from your DSP configuration / design software and have your EM12 up and running in minutes
- Backlit LED push button switches
- Custom program Faders, Buttons, & LED’s to your DSP functions
- POE+ | Power Over Ethernet network connection eliminates wireless connectivity issues (802.3at compliant)
- Faders can be programmed to function as high, mid, and low frequency EQ controls
- Each channel’s push buttons can be programmed to controls in your DSP such as auto mixer on/off, auto gain control bypass, and channel on/off control
- Channel LED’s can be programmed to indicate status of auto mixer highest gain, signal presence, or other meter indicators
- Twelve user defined backlit push button switches are available to control fader banks 1 – 4, high, mid,or low EQ, system selections, or can be used to trigger DSP presets
- Custom label for your specific application is available at no additional cost with initial order
- Available versions:
- EM12-Desktop
- EM12-Rackmount

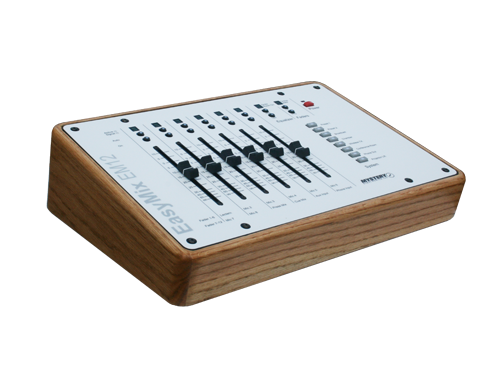

- EM12-Console (w/ solid oak wrapper)
- EM12-RouteIn
Perfect for:
-
- Classrooms
- Houses of Worship
- Board Rooms
- Courtrooms
- Meeting Rooms
- Legislative Chambers
- Training Rooms
- Auditoriums
- Schools Stadiums
- Event Centers
- Performance Venues
Includes: 1ea EasyMix EM12-* (variation ordered), 1ea POE+ injector, 1ea Network Cable, 1ea Phoenix Style connector
A&E Specification
EM12 DSP Control Surface: The DSP Control Surface shall provide remote control capabilities to supported digital signal processors over Ethernet. DSP Control Surface shall be equipped with six (6) each physical fader channels.Each channel shall provide one (1) each 100 mm motorized fader, two (2) each programmable functions via backlit tactile push button switches, and two (2) each status indicating LED’s. DSP Control Surface shall provide programmable control of up to twenty-four (24) each gain controls and additional field programmable functions for each device within the unit. Twelve (12) each customizable tactile push buttons shall be able to be field programmed to control fader bank selection, EQ, presets, or logic functions depending on the options available for each digital signal processor. All tactile backlit push buttons shall be momentary, non-latching and shall provide integral LED status indication.All program memory shall be non-volatile, no batteries required. DSP Control Surface setup shall be accessible using a built-in web server hosted at the device IP address.The DSP Control Surface shall have the following rear mounted connectors: Ethernet RJ45, USB type A, and power switch.The DSP Control Surface shall be constructed of satin black, powder coated steel. The DSP Control Surface faceplate shall be 14 ga., with polyester laminated printed designation overlay. All electronics shall be enclosed in 16 ga. chassis.
The DSP Control Surface shall be Mystery Electronics EasyMix series, model EM12- *
* Indicate appropriate model variation:EM12 – Console**, EM12 – Desktop, EM12 – Rackmount, EM12 – Route-in
**For EM12 – Console, select solid hardwood wrapper type:EM12-CWGO (Console style wrapper, Golden Oak) EM12-CWUO (Console style wrapper, Unfinished Oak)
