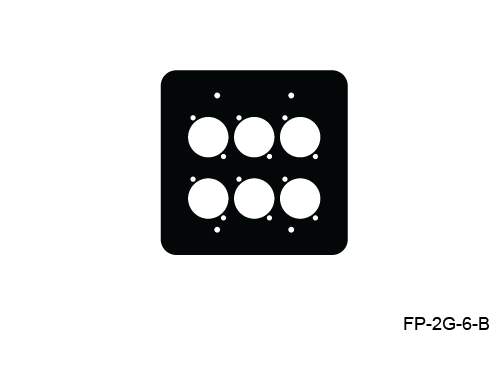

FP-2G-6-B

FP-2G-6-B

  • 2-gang audio video connector panel
  • Accommodates 6ea FlexiConn or Neutrik D® Connectors
  • Satin black ceramic finish provides scratch resistance
  • Heavy-duty 14 gauge construction
    IN STOCK

        • Mounts on standard trade size 2-gang rough-in box
        • Vertically positioned connector mounting for professional appearance
        • Laser-cut precision eliminates warped panels
        • Radiused corners achieve modern custom aesthetic



      Includes: 1ea FP-2G-6-B Panel and mounting screws.  Compatible labeling, low-voltage connectors, and accessories also available.

Weight 1 lbs
Gang Size

2-Gang
Overall Dimension (nominal)

4.5L x 4.56W in
Connector Capacity

6ea FlexiConn (or equivalent)
Finish

Satin Black
Assembly

1ea FPG Panel and mounting screws
Warranty

2 Years

Resources

Cut Sheet

Dimensional Data

Related

Connectors

FPG Series Wall Connector Panels

Connector Panel Labeling

A&E Specification

FP-2G-6-B – Gang Wall Panel, Satin Black (Ceramic Coated) Wall panel shall be of 14 gauge steel, shall have radiused corners to .375, shall accommodate six (6) FlexiConn / Neutrik D connector or equivalent, and shall be provided with #6 stainless steel screws.  Panel shall have a ceramic plastic satin black finish so as not to create specular light reflections.  Panel shall mount on standard trade size gang box.  Panel shall be Mystery Electronics FP-2G-6-B.
