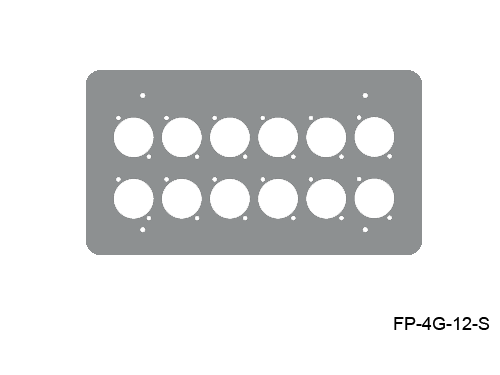

FP-4G-12-S

FP-4G-12-S

  • 4-gang audio video connector panel
  • Accommodates 12ea FlexiConn or Neutrik D® Connectors
  • Brushed Stainless Steel provides scratch resistance
  • Heavy-duty 14 gauge construction
    IN STOCK

        • Mounts on standard trade size 4-gang rough-in box
        • Vertically positioned connector mounting for professional appearance
        • Laser-cut precision eliminates warped panels
        • Radiused corners achieve modern custom aesthetic



      Includes: 1ea FP-4G-12-S Panel and mounting screws.  Compatible labeling, low-voltage connectors, and accessories also available.

Weight 1 lbs
Gang Size

4-Gang
Overall Dimension (nominal)

4.5L x 8.188W in
Connector Capacity

12ea FlexiConn (or equivalent)
Finish

Brushed Stainless Steel
Assembly

1ea FPG Panel and mounting screws
Warranty

2 Years

Resources

Cut Sheet

Dimensional Data

Related

Connectors

FPG Series Wall Connector Panels

Connector Panel Labeling

A&E Specification

FP-4G-12-S – Gang Wall Panel, Brushed Stainless Steel Wall Panel shall be of 14 gauge steel, shall have radiused corners to .375, shall accommodate twelve (12) FlexiConn / Neutrik D connector or equivalent, and shall be provided with #6 stainless steel screws. Panel shall mount on standard trade size gang box.  Panel shall be Mystery Electronics FP-4G-12-S.
