- Allows for application configurations that may normally require field modification or a custom-fabricated enclosure

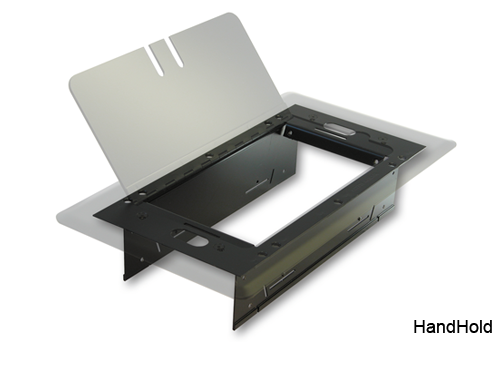

- Out of the box, the open bottom basket creates a cable pass through floor box pocket location*
- Available accessories provide for more customizable configurations than a standard basket
- Can be used with all ModuLine Connector Insert Panels and /or Options**
- Use pre-punched XP Panel to mount connectors or devices in the bottom of HandHold basket
- Can be installed with or without rough-in box as appropriate for application, making below basket construction accessible as needed*Important: To minimize damage HandHold basket equipped floor boxes should remain closed when not in use. Depending on configuration, maximum allowable space for mating cable mounted connectors may be limited by cover style selected and cover may need to remain in open position while in use. Please call for best practices and technical support.
**Mounting Moduline Connector Insert Panel in HandHold basket requires part# MPIB (not needed for mounting MPR duplex power option). Unused HandHold basket end panel positions should be trimmed out with part# MEBP.
Applications include:
-
- Computer floor installations
- Large diameter cable pass through
- Temporary AV Feed Truck Connections
- Anywhere a pass through location is needed in the floor
- Use with FMCA2000 Series unit for in-wall pass through applications
Includes: 1ea HandHold basket substitution upgrade. Compatible HandHold basket accessories, available rough-in box, duplex power option, active low-voltage device panel(s), low-voltage connector insert panel(s), labeling, connectors, and accessories also available.
Note: Must be ordered with compatible FMCA2000/3000 unit. When ordering HandHold basket substitution in place of standard basket, please indicate appropriate HandHold quantity as a line item below the corresponding floor box (if not indicated HandHold will be substituted in any compatible unit ordered upon fulfillment).
