MPM

MPM

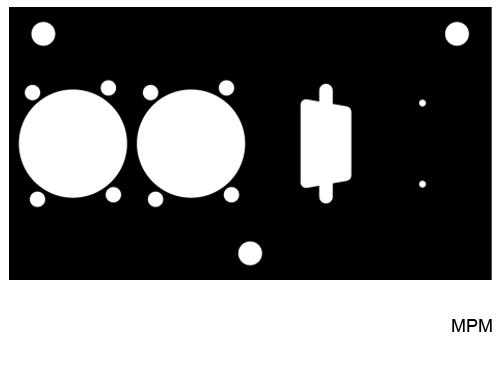

  • Accommodates 2ea FlexiConn Connectors, 1ea VGA, and pilot holes for optional audio
  • Compatible with FMCA Series Floor Box Pockets & AW Series wall enclosures
  • Twice the capacity versus gang based av panel systems
  • Satin Black ceramic finish
  • Heavy-duty 14 gauge construction
  • Full panel labeling and connectors also available
    IN STOCK

  • Mounts 2ea FlexiConn / Neutrik® D or SwitchCraft® D3F, 1ea VGA, and pilot holes for optional audio
  • Heavy-duty 14 gauge steel construction
  • Satin Black Ceramic finish provides scratch resistance for long term durability
  • Laser-cut precision eliminates crooked connectors and warped panels
  • Vertically positioned connector mountings for professional appearance
  • Combine with available full panel labeling for a distinctive signature to any project
  • Your logo graphic with our unlimited labeling colors creates a complete panel solution

Includes: 1ea MPM Panel.  Compatible labeling, low-voltage connectors, and accessories also available.

Weight 1 lbs
Compatible Enclosures

AW Series Wall Boxes, FMCA Series Floor Boxes
Overall Dimension (nominal)

4.146W x 2.530H in
Finish

Satin Black
Assembly

1ea ModuLine Panel / Option
Warranty

2 Years

Resources

Cut Sheet

Dimensions

Related

Connectors

Connector Panel Labeling

A&E Specification

MPM – ModuLine Insert Panel(s) shall be of 14 gauge steel, shall accommodate 2ea Neutrik® D or SwitchCraft® D3F, 1ea VGA and pilot holes for optional audio, and shall be removable for installation and service without disassembling Cover, Gasket or Basket.  All components shall conform to all applicable standards of the National Electrical Code.  ModuLine Insert Panel(s) shall be Mystery Electronics MPM.
